NVisionX Industrial borescopes
NVisionX borescopes are flexible visual inspection solutions that effectively support maintenance and diagnostics across a wide range of industrial applications.
Key Features of NVisionX
NVisionX –Professional Industrial Inspection Equipment, enabling fast and accurate inspection of hard-to-reach areas.
NVisionX Idustrial Borescopes - Key features:
- Equipped with a 5-inch HD display
- High-capacity 8,350 mAh battery
- 5-level screen brightness and LED illumination control (1–5) via a dedicated control button
- Joystick control enables 360° adjustment of the camera head direction
- Simultaneous video recording and image capture
- Interchangeable probes available in diameters ranging from 2.8mm-6.5mm
- Integrated magnetic base for convenient and stable inspection on workbenches
5-inch HD display
High-capacity battery
5-level LED illumination control

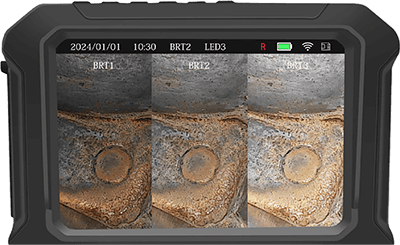

Adjustable screen brightness
Multi-directional joystick for 360° camera tip articulation
Simultaneous video recording and image capture
Interchangeable probes with diameters ranging from 2.8mm to 6.5mm
Image Inversion Function
NVisionX offers a comprehensive range of NV Series models with versatile probe options to meet a wide range of industrial inspection needs.
Technical Information of NVisionX
Insertion tube
MODEL
NV-40B
NV-60B
NV-65B
Standard length
1m (opt. 2, 3m,…)
1m (opt. 2, 3m,…)
1m (opt. 2, 3m,…)
Diameter
4mm
6mm
6.5mm
Exterior
Stainless steel braid/Vonfram
Stainless steel braid/Vonfram
Stainless steel braid/Vonfram
Articulation
All way
All way
All way
Maximun length
3m
3m
3m
Optical and Probe
MODEL
NV-40B
NV-60B
NV-65B
Outer diameter
4mm
6mm
6.5mm
Rigid length
18mm
18mm
18mm
Illumination (Forward)
LED
LED
LED
Illumination (Size)
LED
LED
LED
DOV (Forward)
8~100mm
10~100mm
10~100mm
DOV (Side)
5~50mm
8~80mm
8~80mm
Pixel (Forward)
1.000.000
1.000.000
1.000.000
Pixel (Size)
1.000.000
100
100
FOV (Forward)
120o
120o
120o
FOV (Side)
120o
120o
120o
Housing material
Stainless steel/Vonfram
Stainless steel/Vonfram
Stainless steel/Vonfram
Cover
Optical glass
Optical glass
Optical glass
Application of NVisionX
Key applications of NVisionX Industrial Borescopes
- Wind Turbines: Inspection and maintenance of gearboxes and gear sets
- Industrial Piping: Inspection of welds and internal surfaces of oil & gas, chemical, water, and other industrial piping systems
- Precision Machining: Inspection of internal holes, casting cavities, and other hard-to-reach areas in precision-machined components.
- Automobile industry: Inspection of engines, retrieval of small dropped parts, and detection of dust and foreign objects around intake valves.
